Mounting a chart or map so visible while paddling

Anyone have tips on how to mount a chart or map (e.g. ordnance survey map) so it is visible while paddling?

One issue that can occur when paddling a jagged coastline is that it is easy to lose track of your location, particularly if there are many small islands. An entry to a loch can be mistaken for a gap between islands (or visa-versa), leading to confusion about location.

An OS map (which shows land contours in detail) can be helpful on some coastlines, since you can use it to identify promontories (I am heading for promontory X, which is low-lying. On the way there I will pass Y, which has pronounced peak).

With my middle-aged eyesight, mounting such a map (or nav device) about at foot level is a good thing.

I suggest you plug your routes on a GPS watch, if it allows for navigation.

I've never used charts but imagine that even with the chart in front of you must be sure that your "reference peak" is in fact the one you are paddling by.

Speaking from the point of view of someone who has done a bit of at-sea navigation (sailing and motor barge), it is the chart that helps you confirm the identity of coastal features, and hence your location.

Lighthouses, significant marks (ranging from port lights to postboxes), buoys; this is the sort of information I expect on a chart. I also expect to have the knowledge to read the chart.

I fail to see how a GPS watch is a better solution. If tide, wind cause you to need to change your route, what use are a few GPS waypoints?

Charts are better for navigation on the water, for the reasons given above, They also are updated much more frequently. Terrestrial maps such as USGS topos do help in locating possible camping spots or fresh water sources.

Mrcharly, I don’t see how you can keep a chart close enough and useable in a surf ski cockpit. It’s easy with a decked kayak.

However, maybe you can keep a chart HANDY, which does not have to mean mounting iit to the ski. Attach it to yourself or your PFD. You’ll probably need to fold the chart and fit it inside a clear flexible chart case.

Thanks, I was wondering about that - a map case that I can slip into my PFD front pocket might work well.

Before a big trip, maybe writing nav notes (tidal stream times and directions, notable tidal overfalls, navigation waypoints, that sort of thing) into a small page and strapping that to a thigh or similar.

A china marker writes on surfaces that get wet and stays legible. The marks are removable without any special substances. One well-known sea kayak coach and expeditionist advocated writing right on the deck’s gelcoat surface. It works,

You might be able to roll up the encased chart (some cases are more flexible than others), rubber band it to stay rolled, and then tether from one or two grommeted corners that they usually come with. Attach the tether to a carabiner to somewhere on your PFD or clothing.

You could also roll a waterproof chart directly inside a small-diameter polyethylene tube with caps, similar to PVC pipe but much lighter and more UV-resistant. Then tether that. IIt’s not instantly useable but could be good for storage between outings,

Have fun!

Is there fog on the scottish coast? I imagine its a possibility. If there is suddenly zero visibility you could be in a really bad situation and a chart might not be much help. I recommend having some sort of gps watch on the footstrap, and knowing how to use it. In particular the feature that allows you to follow a “breadcrumb” trail such that you follow your exact course back home. If you follow a direct arrow that points home as the crow flies it might lead you into headlands reefs and other bad things.

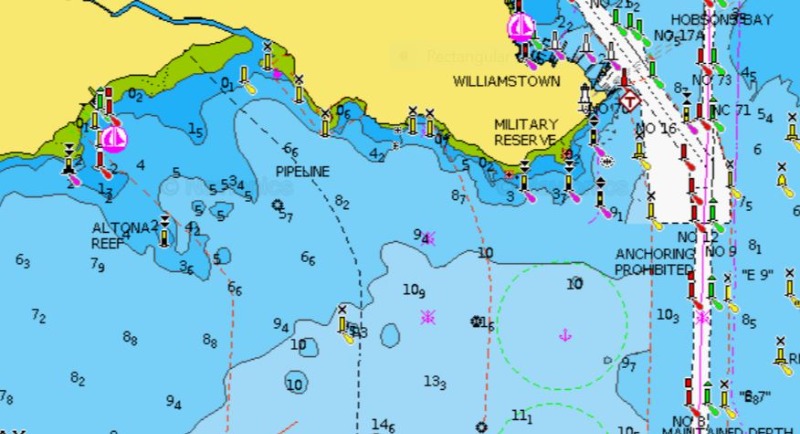

Coming from a kayak fishing background we use navionics, gps maps, obviously the integral version with sounder is a no go as it requires batteries etc, but there is also the mobile ap version. You would have to set it to sleep mode so it only fires up when you want to look at it, or the ap chews through phone battery. I would suggest using a separate phone for this reason. the phone ap has a positioning curser, and can plot path if required. Different map overlays possible, showing terrain etc.

Really wouldnt be hard to have an extended mounting bracket from either forward bulkhead of behind foot board, to mount something within reach other than using footstrap

kayak fishos regularly rely on this ap to navigate around in the dark when they cant see any landmarks at all. Definitely get you home in a fog

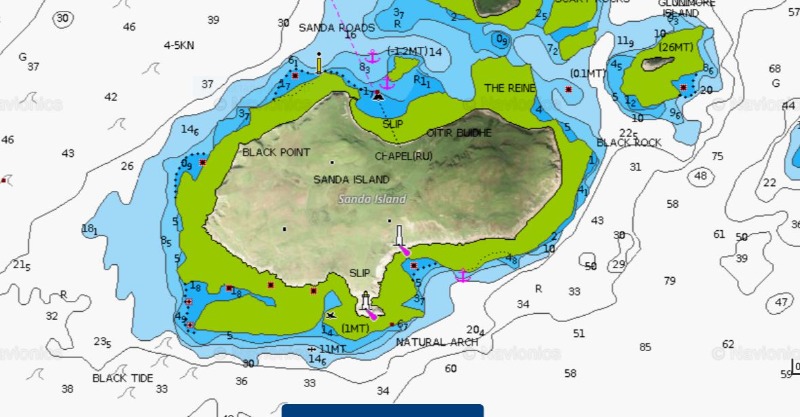

terrain view and satellite views

I had a look around the web when this thread started.  I agree with the Navionics suggestion.
If you add a bluetooth GPS antenna and link it to the phone, it will save your battery.

Personally, I'd never venture out in the north Atlantic without an experienced guide and every possible backup system known to man.

I may try the Navionics app.  It's only $14.99 for the U.S. maps.

I hate it when the entrance to the harbor is obscured.   This time of year can be treacherous on the north shore in low visibility.  Squalls come thru, rogue sets across the reef, etc.  The glare of the sun this time of year is a big pain in my ass.
I've been charting my runs for many years on Maui's north shore thru Google Earth - to help educate myself on the depths at certain landmarks.  Sometimes those landmarks go away.  To have a backup of my location is something I've wanted many times.  Those maps are very, very nice.  Very user friendly and flexible.

I like the idea of writing on the deck (or on the hump).

The Nelo has a bracket on the footstrap, mainly aimed at mounting cameras. I have a map holder for cycling and might see if that will fit on the footrest bracket.

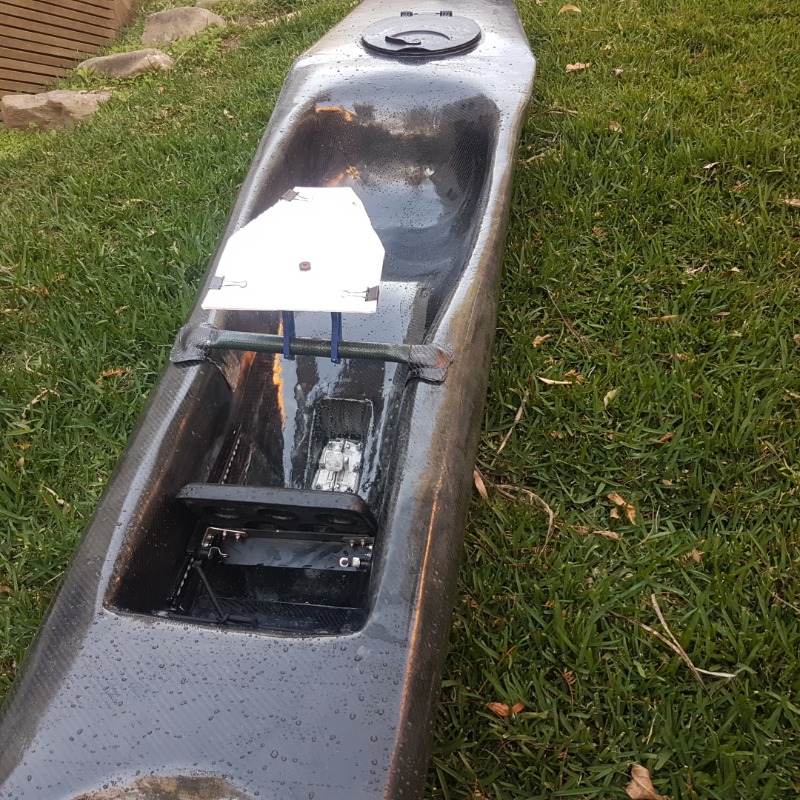

Did something similar for an adventure this year, hopefully the photo uploads, it makes more sense than my description.
Older model Miry mtb map board with a piece of coreflute cutdown to a smaller size.
Thought about using a cutdown carbon handlebar to mount it to, but ended up putting a carbon sleeve over some plastic conduit.
Step 1: Essentially you're making a carbon tube with flat ends.  .
Cut the conduit just wide enough to sit on the top of the footwell, squash the ends of the conduit flat with a heat gun + a vise, then wet out the carbon sleeve and vac or heatshrink it over the plastic conduit.
Step 2: Make some L brackets that are custom shaped to fit the footwell
Cover the sides and top of the footwell with plastic and layup up some carbon strips to make a "L bracket" that goes up the side of the footwell and over the top edge.
Step 3: Join the L brackets to the carbon tube
With the brackets still sitting in place on the boat, go crazy with some scrap bits of carbon and join the L brackets and the carbon tube.  Once it's all cured, add some decent quality velcro to the back of the brackets and the footwell to add a bit more security.

If you can fit it to an A4 sheet, try taping it to the hump under your knees. Only one page would be accessible, but it's close enough to read easily.

The belt-and-suspenders approach would be good for some places such as Scotland, Maine coast, NW WA...but remember also that (a) you’ll probably use what you are familiar with more often than the other way, and (b) mariners were navigating in all kinds of conditions in unknown areas, for centuries. There are methods for relying only on chart and compass in peasoup fog.  Oldtimers sometimes crashed into obstacles or got off course, but so do those today who rely solely on GPS.

You still have to observe what’s around you and use common sense 100% of the time, no matter what device(s) you have.

Make sure any battery-powered device is fully charged. Know what the tidal currents will be doing if you paddle in areas strongly affected by those.

And, although this does not seem to be done by ski paddlers, you may want to carry a spare paddle on some outings, or use something other than the lightest paddle you own.

I like Selkie's suggestion (on other forum) of having the Phone/GPS thigh mounted (with velcro or running strap. Easier to see (for us getting on in years) and easily assessed if you want to alter views or different screens.
One to try I think.

Sorry, I didn't mean GPS waypoints, but the literal route/possible routes.

Tides are regular, so I just always know where im at tide-wise.

I only do 3 routes where the wind could change my landing spot or route. 1 of which is the long off shore one where you can't see anything but water until after about 16kms.

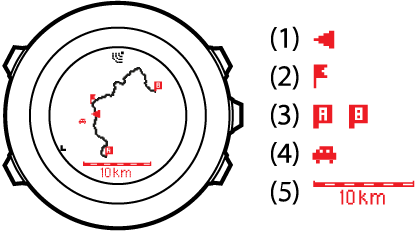

This is how I saw routes on my suunto.



You can change the scale, I used 200m instead of 10km

If no matter what happened I was landing at point X, I just drew that route and followed the path. I can't see any way this can go wrong. The chart  would be usefull for drawing the route on the PC going around the sandbars, lighthouses etc. The way I did, I YOLO'd the route on a super low tide, so I could see everything and then drew that one.

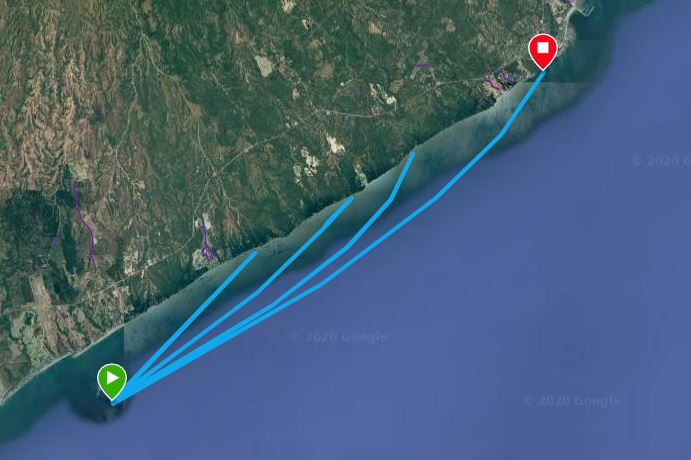

Another scenario is where you take off from one place and depending on the conditions you might want to change your landing spot. In my case for this 20km run, I am familiar with 3 beaches in between the real destination, so I draw the route to the 4 possible landing points on the same course,I start on the real route (farthest from the shore) and if I want to fold, I just jump to another line. Again, I have it plugged as if it was one big 90km or whatever route, with the lines branching out from the starting point.

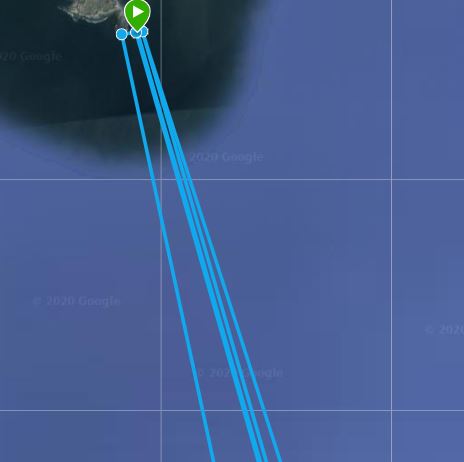

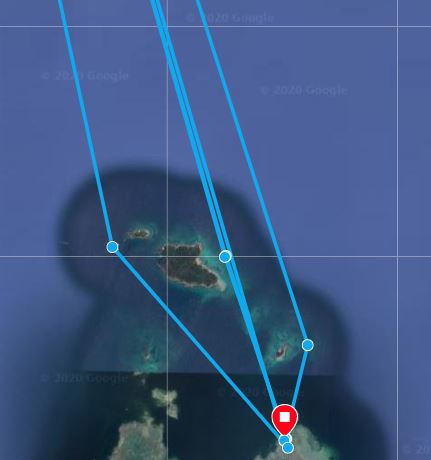

The last scenario is for the off shore, where the landing spot is the same but depending on the wind you can take about 3 different lines. Again, I put the 3 lines in the same "course" and depending on the forecast 15 minutes before the start, I know which one to follow. If I'm taking the one in the center but the waves/wind sart coming in strong form my left, I can either adjust or completely jump to another line.




PD. This are training/race route planning, I guess some similar planning can be done for expeditions, sightseeing, touring.

Quick Edit: the best scale is 200m

In my humble opinion, mounting a useable nav aid on a ski in a useable manner is quite difficult. For me nav screens at the foot strap are not a good option. Too far to see and almost impossible to operate.
FSKs such as Epic 18x are much more livable in long haul scenarios. You can mount all sorts of stuff on it and reach it too. You can also strap a map to your spray skirt.

Improvise, adapt, overcome.

I agree that a sea kayak is way more user friendly when I comes to mounting/reading charts. I tried taping a map of a racecourse on the deck of my surfski one time for a long race. Besides not being able to see it well, it quickly got water spots all over the waterproof cover and I couldn't read it. I'm a tech nerd, but I haven't had the best experience relying on electronics when in a saltwater environment. I'm sure you could find a way to mount/strap/ a chart to your thigh. Necessity is the mother of invention. Let us know what kind of solution you come up with. i'd love to see it.

Do you really need a chart? How long do you plan on being out there?  I could see charts being a big deal on multi day expeditions where you are navigating unknown waters day after day. But if you are just based in one location you might be able to just gradually expand the distance you venture and get familiar with the area that way. Don’t be intimidated by GPS. All ski paddlers I know paddle with one on their footstrap. Most dont use the navigation arrow feature but it is actually simple and effective. I use it pretty much every time I downwind. It is easy to learn and works very well.

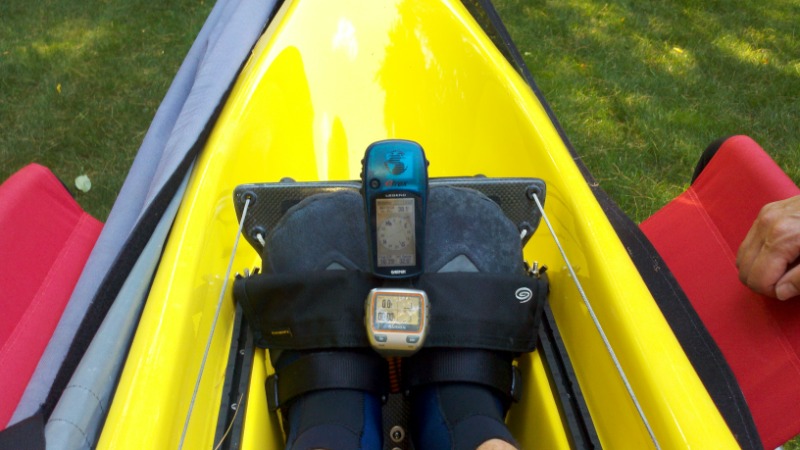

Like Zach says, a GPS in Navigation mode with arrow and waypoints works great.   Here's a picture of a set up I used years ago for a foggy Blackburn Challenge (20 miles around Cape Ann).  I made a simple bracket from a piece of aluminum, bolted to footplate then mounted a small held Garmin.  Then had my Garmin 310 on the foot strap for typical metrics.   Downloaded the route to the hand held, put in navigation mode and watched the arrow point to the next waypoint.  Really like having the two separate functions.  Once I started them didn't have to touch.  I know this doesn't give a map or chart, but agree the Nav function is great.

Chris
