1 month 3 weeks ago #41428 by Next2you

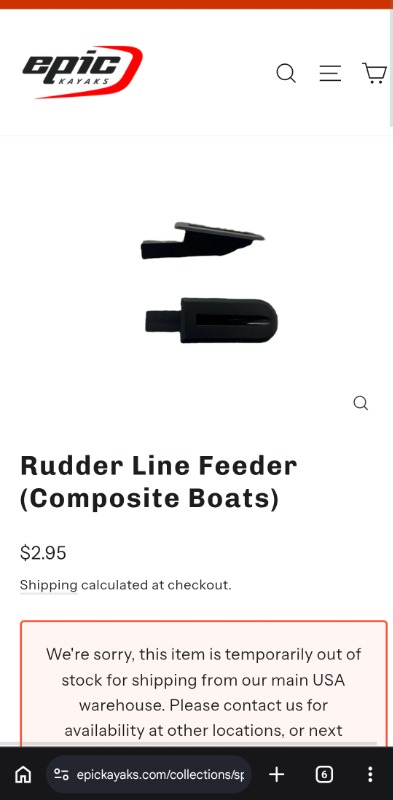

I need to change the feeders for my V10 sport but here in Italy is impossible to find them. Can someone tell me where I can find a 3d print file in order to produce them by myself?
Attachments:

Please Log in or Create an account to join the conversation.

More
1 month 3 weeks ago #41429 by ccchappell

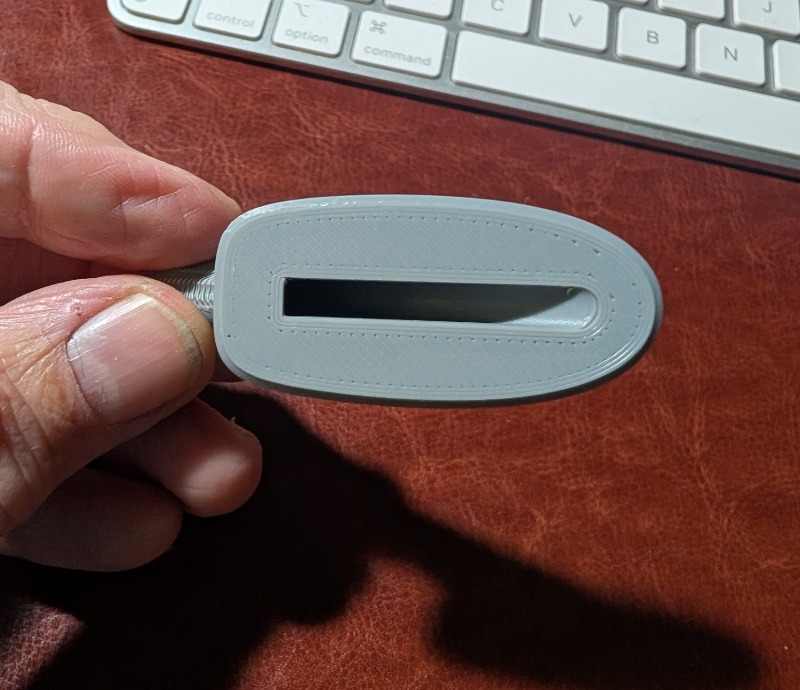

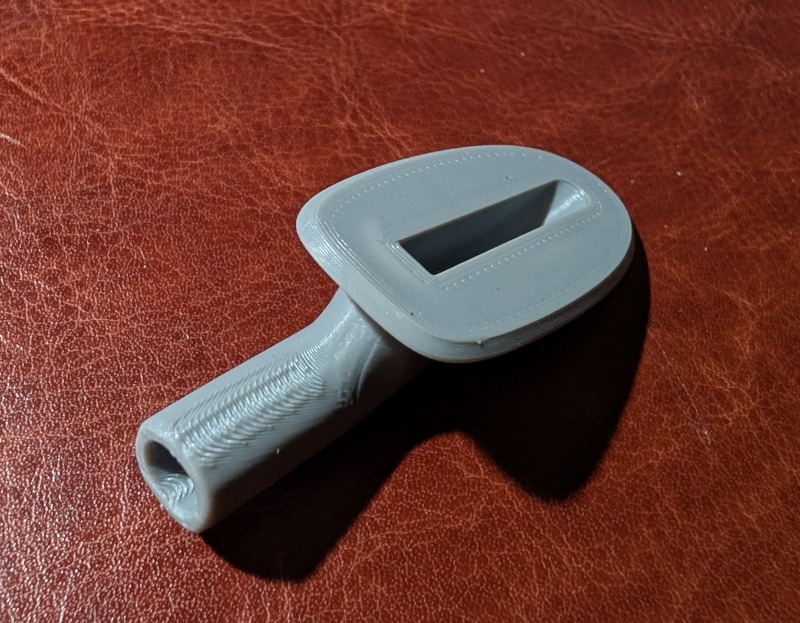

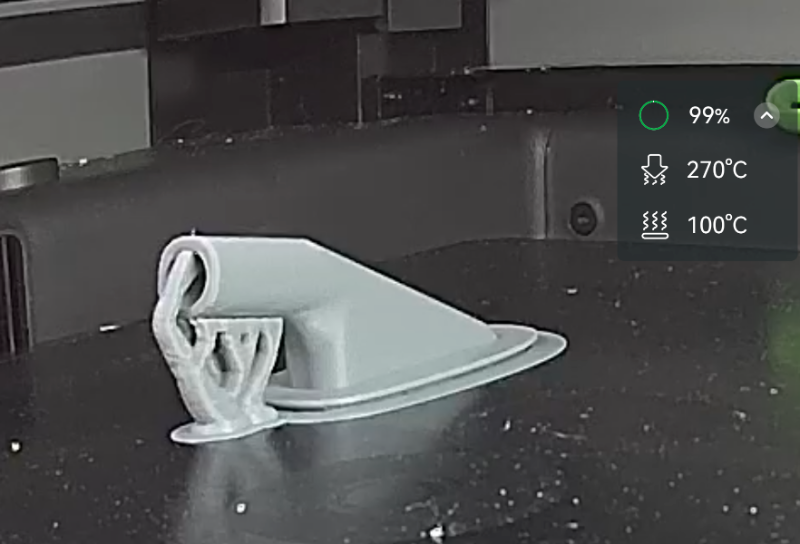

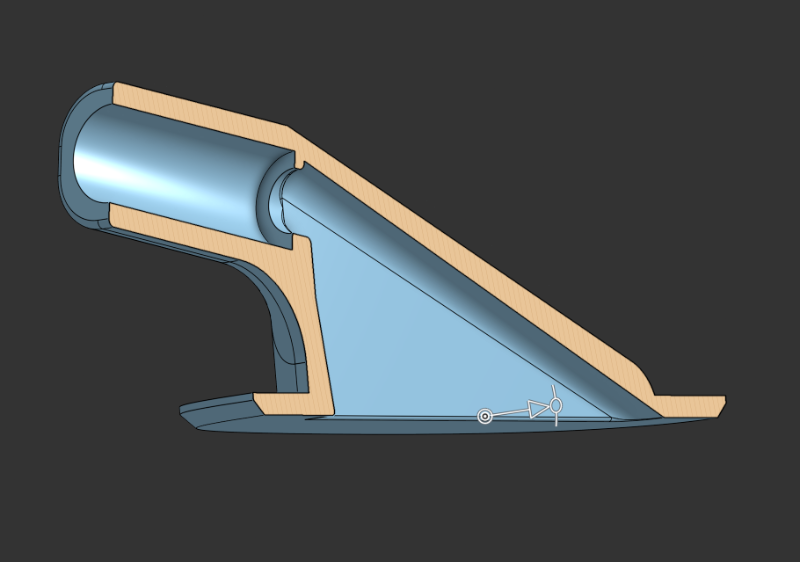

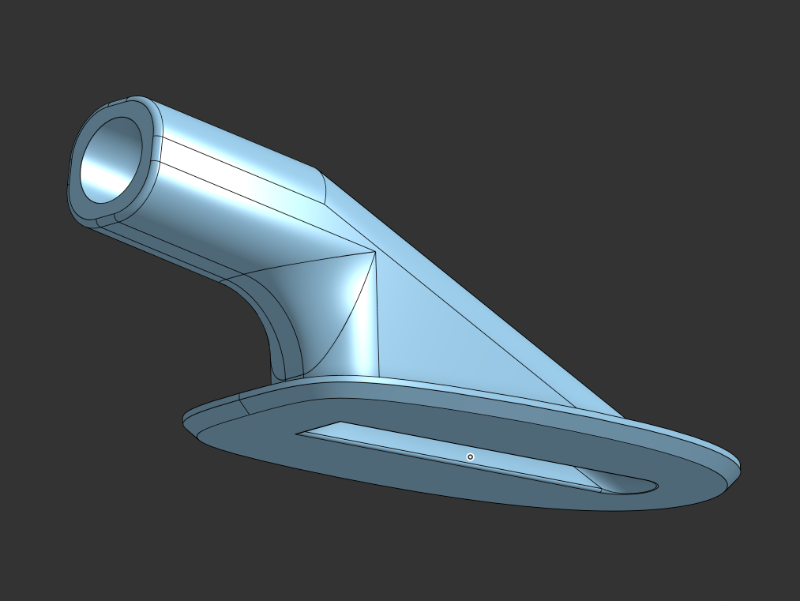

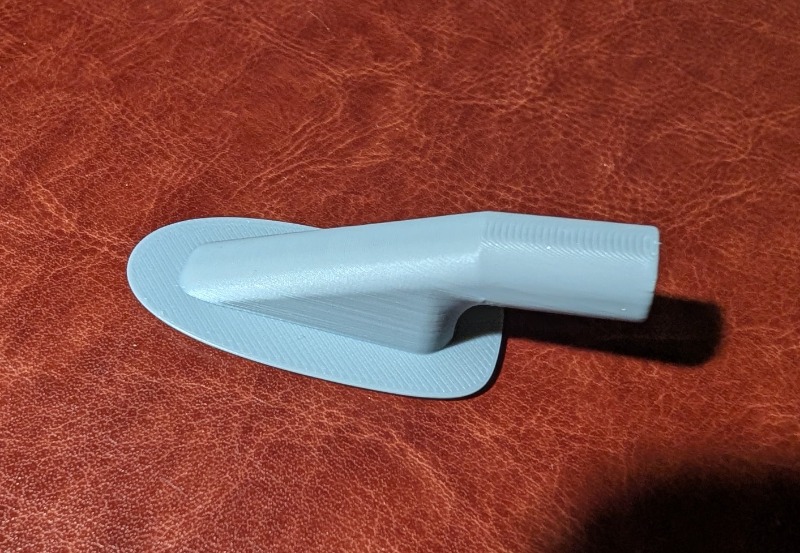

Hi, I designed and 3d printed these for a friend who repairs boats and like you could not find the parts anywhere here in the US. I printed them in ASA on a BambuLabs 2PS. These were designed to use with tubes 6.5mm OD, 4mm ID, and he tells me they worked great on his Epic rudder tube repairs.

I have the step, stl and 3mf files ready to share with you, but those extension are not allowed here.

If you want to shoot me an email at This email address is being protected from spambots. You need JavaScript enabled to view it. I can send them right over.

Good luck
Chris

BracaSport USA Importer
FastPaddler.com
The following user(s) said Thank You: zachhandler

Please Log in or Create an account to join the conversation.

More
1 month 1 week ago #41432 by zachhandler
Very cool chris!

Current Skis: Nelo Vanquish AIR, Epic V10g4, NK 670 double, Epic v8 double g2, Think ion g3, NK exrcize, Carbonology Feather, Think Jet, Knysna Sonic X
Former Skis: Epic v10g3, Kai Waa Vega, Epic V12 g2, Epic V12 g1, Epic v10 double, Nelo 550 g2, Fenn Elite S, Custom Kayaks Synergy
